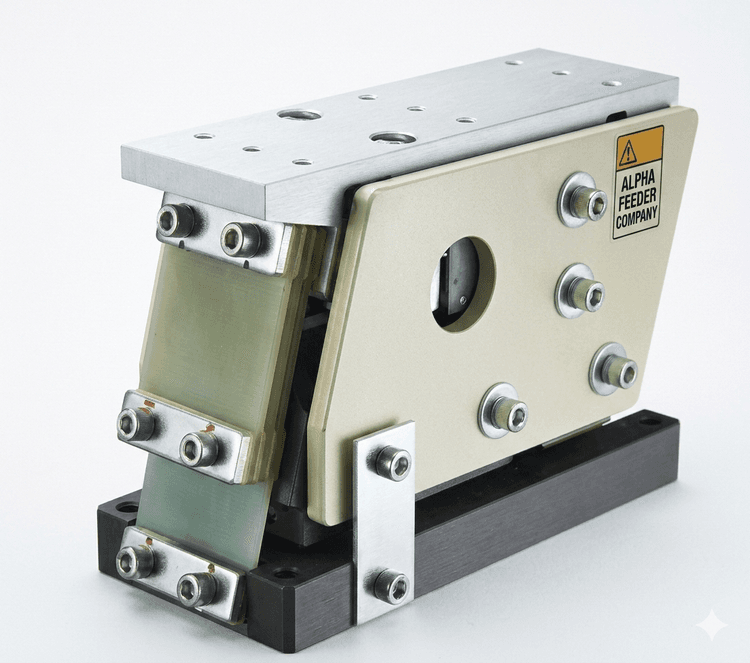

Linear feeders
Smooth, consistent horizontal transport of oriented parts with precision vibration control
Overview
Linear vibratory feeders are engineered to provide a smooth, consistent, and horizontal transport of oriented parts from the primary feeder to the next workstation. They act as a critical bridge in the assembly process, utilizing precise vibrations to maintain part orientation while compensating for distance and height variations between machines.
This advanced drive system is particularly effective for creating a "buffer" or accumulation zone, ensuring a steady supply of components to high-speed pick-and-place systems or packaging units. The linear track is designed to eliminate part jamming and minimize friction, allowing for high-velocity transfer without damaging delicate surfaces.
Our linear feeders are custom-designed based on your specific track length, part weight, and downstream integration needs. Each unit is precisely tuned to ensure synchronized vibration, achieving optimal throughput and seamless hand-offs in your automated production line.
Key Features & Benefits
Smooth Horizontal Transport
Engineered for consistent, vibration-controlled horizontal movement of parts.
Precision Vibration Control
Advanced drive systems maintain precise vibration for consistent part movement.
Buffer/Accumulation Zone
Creates a buffer zone to ensure steady supply to high-speed downstream equipment.
High-Velocity Transfer
Enables high-velocity part transfer without jamming or surface damage.
Custom Lengths
Available in various lengths to meet specific production line requirements.
Seamless Integration
Designed for smooth integration with existing automation systems and equipment.
Technical Specifications
| Track Length | Custom (200mm - 1200mm) |
| Load Capacity | 0.5Kg - 15Kg (Depending on model) |
| Feed Rate | up to 12 meters/min* |
| Power Supply | 220V, 50Hz |
| Control Type | Variable Frequency Drive (VFD) / Amplitude Controller |
| Material | SS304 / SS316L / Aluminum |
| Track Finish | Hard Crome / Ground / Coated (as per requirement) |
| Mounting | Rigid Base Plate / Adjustable Support Stands |
* Feed rates vary based on part size, shape, and complexity. Contact us for specific applications.
Applications
Working Principle
The linear vibratory feeder operates on the principle of high-frequency linear vibration to transport oriented parts along a horizontal track. An electromagnetic drive unit, typically mounted beneath the track, generates controlled oscillations that move parts forward in a precise, rhythmic motion.
As parts travel along the linear track, they benefit from several key operational features:
Vibratory Transport – Provides smooth, consistent movement to bridge the gap between processing stages.
Buffer Accumulation – Creates a controlled queue of parts to ensure a constant supply to the downstream machine.
Track Alignment – Precision-machined guides maintain the orientation established by the primary feeder.
Amplitude Control – Adjustable vibration intensity allows for the handling of various part weights and materials without surface damage.
Key Advantages
Ensures a continuous and smooth transfer of parts between workstations
Creates a high-capacity buffer zone to prevent machine idling
Ideal for transporting parts over longer distances where bowls cannot reach
Gentle horizontal motion minimizes part-to-part contact and surface damage
Adjustable track lengths and widths allow for seamless downstream integration
Maintains precise part orientation established by the primary feeder
Customization Options
Every production line is unique. We customize our linear feeders to match your specific requirements.
Custom Track Lengths
Multi-Lane configurations
Integrated escapements
Orientation Maintenance
Smart Sensor kits
Variable Frequency Drives
Quick-exchange tooling
Specialized coating
