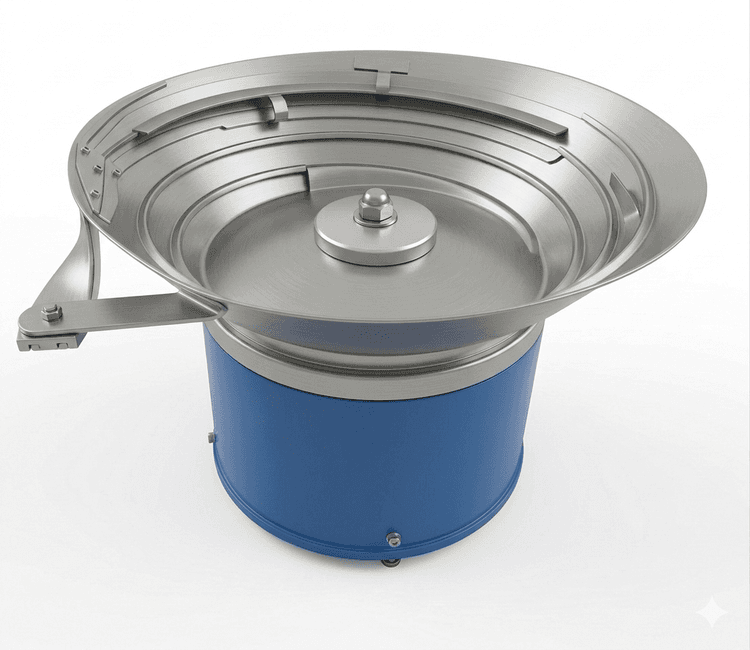

Conical Feeder Bowls
Cone-shaped bowls ideal for cylindrical and round parts feeding
Overview
Conical vibratory feeder bowls feature a cone-shaped design that provides natural part flow characteristics ideal for round, cylindrical, and spherical components. The tapered geometry creates a gentle cascading motion that naturally orients parts while preventing jamming and bridging.
The conical design is particularly effective for parts like bottle caps, battery cells, cylindrical tubes, and other round components. The gradual slope ensures smooth material flow from the center to the outer track, with parts naturally settling into the correct orientation as they travel.
Our conical bowls are precision-manufactured to maintain exact angles and surface finishes, ensuring consistent performance across millions of cycles.
Key Features & Benefits
Natural Part Flow
Cone geometry creates smooth, natural flow patterns that reduce jamming and part damage.
Self-Centering Design
Parts naturally migrate toward the center, ensuring consistent feeding from the track.
Gentle Handling
Reduced part-to-part contact minimizes scratching and damage to sensitive components.
High Efficiency
Optimized geometry achieves high orientation rates with minimal rejected parts.
Easy Cleaning
Smooth conical surface allows quick cleaning and changeover between production runs.
Compact Footprint
Efficient design requires less floor space compared to equivalent stepped bowls.
Technical Specifications
| Bowl Diameter | 150mm - 600mm |
| Cone Angle | 15° - 45° (customizable) |
| Feed Rate | 20 - 400 parts/min* |
| Power Supply | 220V, 50Hz |
| Control Type | Variable frequency drive |
| Material | SS202 / Aluminum |
| Surface Finish | Mirror / Matte / Textured |
| Drive Type | Electromagnetic |
* Feed rates vary based on part size, shape, and complexity. Contact us for specific applications.
Applications
Working Principle
Conical feeder bowls utilize the natural properties of inclined surfaces combined with vibratory motion. The electromagnetic base generates controlled vibrations that create a micro-throwing action, propelling parts up the spiral track.
The conical shape provides several advantages:
The cone angle is carefully selected based on part characteristics: - Shallow angles (15-25°) for lightweight parts - Medium angles (25-35°) for standard applications - Steep angles (35-45°) for heavy or fast-moving parts
Key Advantages
Ideal geometry for round and cylindrical parts
Reduced jamming compared to flat-bottom bowls
Natural orientation through gravity flow
Lower energy consumption for equivalent throughput
Minimal part damage due to gentle handling
Quick and easy cleaning between batches
Customization Options
Every production line is unique. We customize our conical feeder bowls to match your specific requirements.
Cone angle optimization for part characteristics
Single or multi-track output configurations
Integrated part counters and sensors
Quick-change tooling for multiple part variants
Dust covers and enclosures
Integration with downstream equipment
