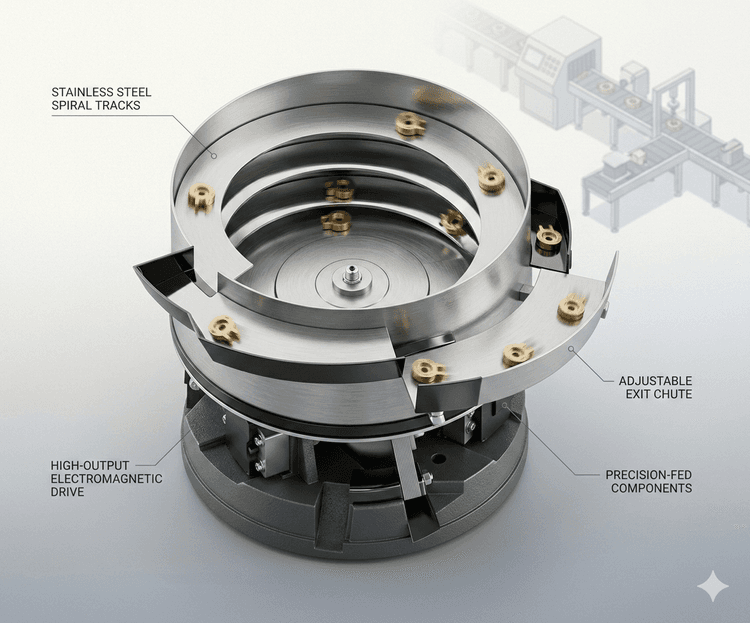

Cylindrical Feeder Bowls
Standard cylindrical design for general-purpose parts feeding
Overview
Cylindrical vibratory feeder bowls represent the most versatile and widely-used design in parts feeding automation. The straight-walled cylindrical design provides a reliable and proven platform for orienting a wide variety of component shapes and sizes.
These bowls feature a flat or gently sloped bottom with vertical or slightly tapered walls. The internal helical track winds around the bowl's circumference, carrying parts from the center toward the discharge point. Specialized tooling along the track orients parts and rejects incorrectly positioned components.
Our cylindrical bowls are the workhorse of the industry, suitable for everything from small electronic components to larger mechanical parts.
Key Features & Benefits
Versatile Design
Adaptable to wide range of part shapes, sizes, and materials with appropriate tooling.
Proven Reliability
Industry-standard design with decades of proven performance in demanding applications.
Easy Tooling Changes
Modular tooling design allows quick changeover between different part types.
Cost-Effective
Economical solution for standard applications without specialized requirements.
High Capacity
Large bowl volume accommodates bulk quantities for extended unattended operation.
Simple Maintenance
Straightforward construction makes cleaning, inspection, and maintenance easy.
Technical Specifications
| Bowl Diameter | 100mm - 900mm |
| Bowl Height | 75mm - 400mm |
| Feed Rate | 5 - 600 parts/min* |
| Power Supply | 220V, 50Hz |
| Control Type | Fixed / Variable frequency |
| Material | SS202 / Aluminum |
| Track Width | Based on part dimensions |
| Hopper Capacity | 1Kg - 300Kg (customizable) |
* Feed rates vary based on part size, shape, and complexity. Contact us for specific applications.
Applications
Working Principle
Cylindrical bowls operate on the fundamental principle of vibratory conveying. The electromagnetic drive creates a combination of vertical and torsional vibrations that result in a micro-throwing motion at the bowl's surface.
This motion causes parts to:
The cylindrical geometry provides: - Maximum internal volume for part storage - Consistent track angle around the circumference - Predictable part behavior at all positions - Easy access for tooling installation and adjustment
Key Advantages
Most cost-effective solution for standard applications
Wide availability of replacement parts
Easy integration with existing equipment
Suitable for cleanroom and harsh environments
Scalable from small to large production volumes
Well-understood performance characteristics
Customization Options
Every production line is unique. We customize our cylindrical feeder bowls to match your specific requirements.
Single or multiple discharge tracks
Inline escapement mechanisms
Integrated level sensors and hoppers
Sound enclosures for noise reduction
Custom surface treatments
Sanitary designs for food/pharma
