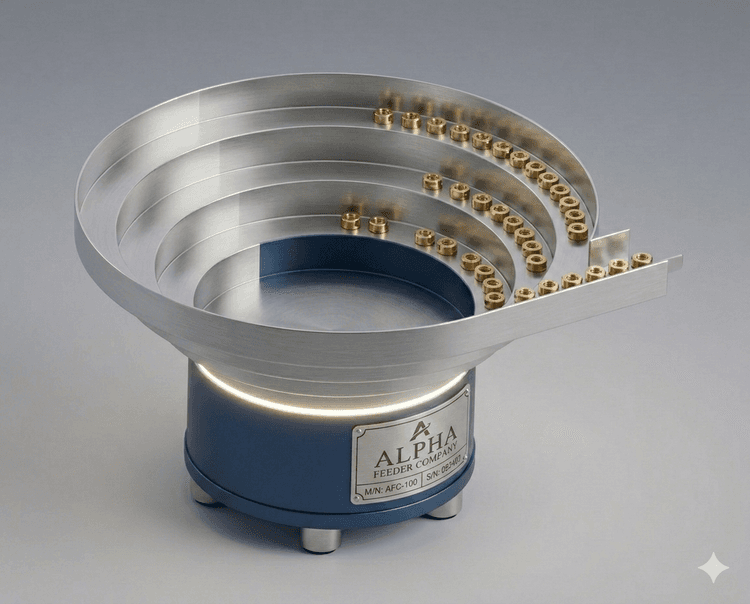

Stepped Vibratory Feeder Bowls
Multi-level bowl design for handling complex parts with varying orientations
Overview
Stepped vibratory feeder bowls are engineered with multiple cascade levels that create a sophisticated parts orientation system. The stepped design allows parts to travel through different stages, each specifically designed to orient, select, and position components correctly before they exit the bowl.
This advanced design is particularly effective for handling complex-shaped parts that require multiple orientation stages. The stepped levels act as progressive filters, ensuring only correctly positioned parts advance while misoriented parts are recycled back to the bowl for re-orientation.
Our stepped bowl feeders are custom-designed based on your specific part geometry, production rate requirements, and integration needs. Each step is precisely engineered with specialized tooling to achieve optimal orientation efficiency.
Key Features & Benefits
Multi-Level Cascade Design
Progressive stepped levels for complex part orientation with each level serving a specific function in the orientation process.
High-Volume Capacity
Designed to handle large quantities of parts with consistent feed rates, ideal for high-production environments.
Precision Tooling
Custom-machined tooling at each step ensures accurate part orientation and rejection of incorrectly positioned components.
Adjustable Feed Rate
Variable amplitude control allows fine-tuning of feed rates to match your production requirements.
Low Maintenance
Robust construction with minimal moving parts ensures long service life with minimal maintenance requirements.
Noise Reduction
Sound-dampening design and optional enclosures minimize operational noise in your facility.
Technical Specifications
| Bowl Diameter | 200mm - 800mm |
| Number of Steps | 2 - 6 levels (customizable) |
| Feed Rate | 10 - 500 parts/min* |
| Power Supply | 220V, 50Hz |
| Control Type | Variable frequency drive |
| Material | SS202 / Aluminum |
| Bowl Finish | As per part requirement |
| Mounting | Floor / Machine mounted |
* Feed rates vary based on part size, shape, and complexity. Contact us for specific applications.
Applications
Working Principle
The stepped bowl feeder works on the principle of vibratory motion combined with gravity and mechanical tooling. An electromagnetic drive unit mounted beneath the bowl generates controlled vibrations that cause parts to travel in a spiral pattern up the bowl's internal surface.
As parts climb the helical track, they encounter various tooling features at each step:
The stepped design creates multiple opportunities for orientation, resulting in higher efficiency and throughput compared to single-level bowls for complex parts.
Key Advantages
Handles complex-shaped parts that single-level bowls cannot orient
Higher first-pass yield reduces cycle time
Multiple stages allow for secondary operations like inspection
Modular design allows for future modifications
Reduced part damage compared to aggressive tooling
Consistent feed rate even with part variations
Customization Options
Every production line is unique. We customize our stepped vibratory feeder bowls to match your specific requirements.
Bowl diameter based on part size and feed rate
Number of steps based on part complexity
Custom tooling for specific part geometry
Integration with existing automation lines
Hopper capacity and auto-refill systems
Inline inspection and rejection systems
Special coatings for sensitive materials
Cleanroom-compatible designs
