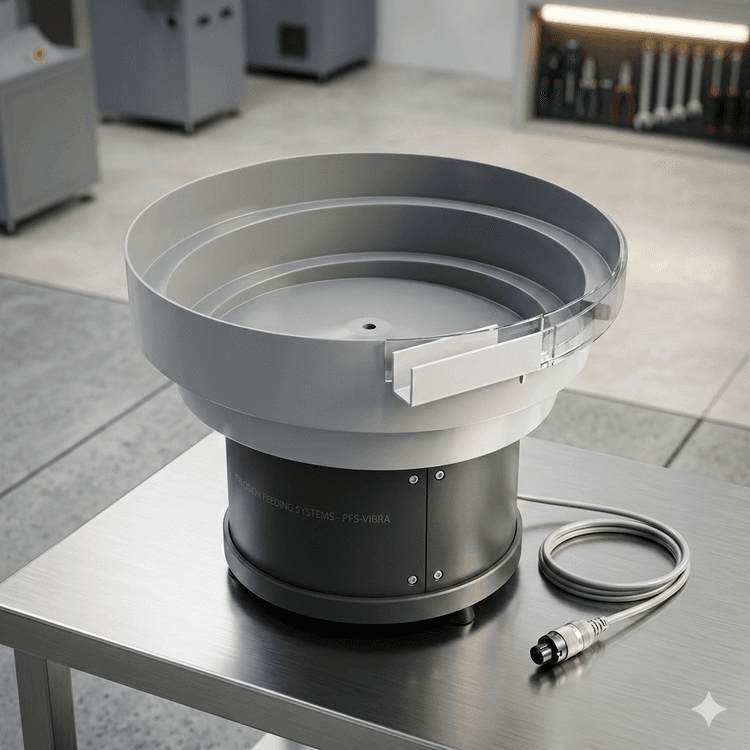

Cascading Feeder Bowls
Waterfall-style feeding for delicate parts requiring gentle handling
Overview
Cascading vibratory feeder bowls employ a unique waterfall-style design where parts gently tumble from one level to another, rather than traveling along a continuous helical track. This gentle handling approach is specifically engineered for delicate, fragile, or easily scratched components.
The cascading design creates multiple orientation opportunities as parts flow from level to level. Each cascade acts as an orientation stage, with parts naturally settling into preferred positions as they fall. This passive orientation method reduces the need for aggressive mechanical tooling.
These bowls are essential for feeding components like glass vials, optical lenses, electronic displays, and other parts where surface damage is unacceptable.
Key Features & Benefits
Ultra-Gentle Handling
Waterfall motion minimizes part-to-part and part-to-surface contact forces.
Passive Orientation
Gravity-based orientation reduces need for aggressive mechanical tooling.
Scratch Prevention
Specially designed to prevent cosmetic damage to sensitive surfaces.
Low Noise
Gentle tumbling motion produces significantly less operational noise.
Self-Cleaning
Open cascade design prevents chip and debris accumulation.
Visual Inspection
Open design allows easy visual monitoring of parts flow.
Technical Specifications
| Bowl Diameter | 200mm - 700mm |
| Cascade Levels | 2 - 5 tiers |
| Feed Rate | 10 - 300 parts/min* |
| Power Supply | 220V, 50Hz |
| Control Type | Variable frequency drive |
| Material | SS202 / Aluminum |
| Cascade Coating | PU Coating |
* Feed rates vary based on part size, shape, and complexity. Contact us for specific applications.
Applications
Working Principle
Cascading bowls work on a unique principle combining vibratory motion with controlled free-fall. Rather than parts climbing a single continuous track, they travel short distances on each level before gently dropping to the next tier.
The cascade process works as follows:
Key design considerations: - Drop heights are minimized to prevent damage - Landing surfaces are cushioned with appropriate materials - Part spacing is controlled to prevent collisions - Final track provides precision alignment for discharge
Key Advantages
Eliminates scratching on delicate surfaces
Handles fragile parts that break in conventional bowls
Reduced rejection rates for cosmetic defects
Lower noise levels improve work environment
Excellent for transparent/glossy parts
Minimal tooling wear and maintenance
Customization Options
Every production line is unique. We customize our cascading feeder bowls to match your specific requirements.
Cascade level configuration
Custom lining materials for specific parts
Ionized air integration for ESD control
Enclosed designs for cleanroom use
Integrated vision inspection
Gentle-start/stop controls
Related Products
Stepped Vibratory Feeder Bowls
Multi-level bowl design for handling complex parts with varying orientations
Learn MoreConical Feeder Bowls
Cone-shaped bowls ideal for cylindrical and round parts feeding
Learn MoreCustomized Bowl Designs
Bespoke feeder solutions tailored to your specific part requirements
Learn MoreReady to Get Started?
Contact our team to discuss your requirements and get a customized quote for cascading feeder bowls.
